Videotronic Kvv-8-16 (vicon V-DA-8-16) video distributie
Vicon MODEL V-DA-8-16
16-CHANNEL VIDEO DISTRIBUTION AMPLIFIER.

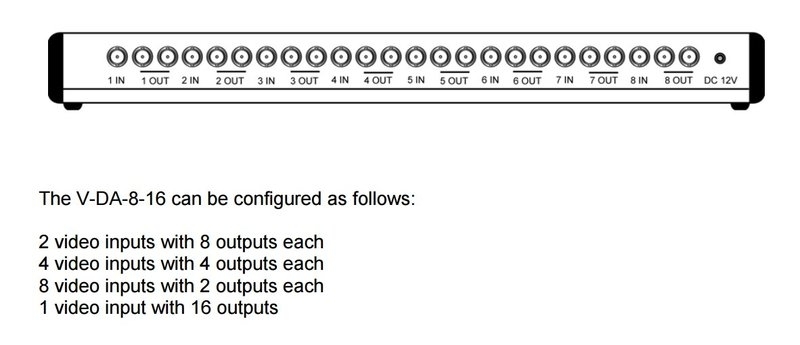

Technical specifications Number of video inputs and outputs 2 video inputs with 8 outputs each 4 video inputs with 4 outputs each 8 video inputs with 2 outputs each 1 video input with 16 outputs
Frequency 20 MHz / - 3 dB
Application indoor
Scanning system CCIR / PAL 625 lines, 50 Hz EIA / NTSC 525 lines, 60 Hz
Signal-to-noise ratio > 56 dB Input signal (F)BAS 1 Vpp / 75 Ω
Output signal (F)BAS 1 Vpp / 75 Ω
Operating voltage 12 V DC
Consumption 2.4 W
Operating temperature 14° to 140° F (- 10° to + 60° C)
Air humidity up to 90 %
IP rating / class IP40/cl. III
MTBF 120.000 hours
EMI acc. to EN 50081-1, EN 55011 class B
EMC acc. to EN 50082-2, EN 61000-4-2, -3,-4, -6, EN 50204
Safety acc. to EN 60950, EN 60065
Housing finish Aluminum
Housing colour Aluminum
Weight 7 lb (3200 g)
Dimensions (W x H x D) 17.3 in L x 1.85 in H x 5 in D (440 x 47 x 128 mm) 19" (1 HU)
Connections Video IN Video OUT Power BNC-F BNC-F Low voltage socket
Accessories included Operating manual, power supply
Video distribution amplifier that can be rack mounted (1 RU) or set on a desk. A separate power supply is provided with the unit.
(Indien anders aangegeven, wordt product geleverd zonder drivers of software.
Software e.o. drivers indien niet plug en play via website fabrikant.
Afbeeldingen kunnen afwijken).
Conditie : REFURBISHED/GETEST
Garantie : 90 DAYS.
Reclames: Binnen 14 dagen.
| Specificatie | Omschrijving |
|---|---|
| Gewicht | 1,85 Kg |
