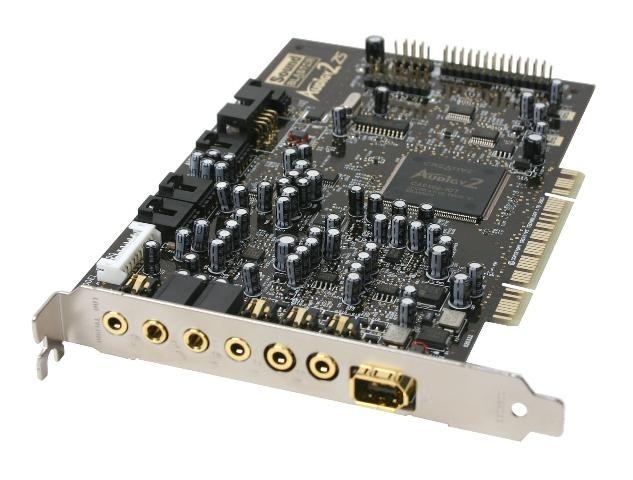

Creative Labs Sound Blaster Audigy 2 ZS SB0350
Audio Performance
- Total Harmonic Distortion + Noise at 1kHz (A-Weighted) = 0.004 %
- Frequency Response at -3 dBr = <10 Hz to 22 kHz
| Signal-to-Noise Ratio with AES17 filter (A-Weighted) | ||
|---|---|---|
| 2V Rated Output 1V Rated Output | ||
| Stereo Output | 108dB | 102dB |
| Front and Rear Channels | 108dB | 102dB |
| Center, Subwoofer, and Rear Center | 108dB | ~102dB |
Technical Specifications
- High Definition Audio Quality for Playback and Recording
- 24-bit Digital-to-Analog conversion during playback with sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz in 7.1 mode and up to 192kHz in stereo mode
- 24-bit Analog-to-Digital conversion during recording in 8, 16 or 24-bit at sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz
- 24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog 5.1 speaker output
- 16-bit recording with sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1 and 48kHz
- SPDIF output up to 24-bit resolution at 48 or 96kHz
- ASIO 2.0 drivers for low latency (as low as 2ms) multi-track playback and recording at 16bit/48kHz*
*(Latency performance may vary based on system configuration)
- Wave-Table Synthesis and Midi Features
- Creative Hardware synthesizer (2x16 channels) with 64-voice polyphony featuring E-MU®'s patented 8-point interpolation technology for accurate sample reproduction
- Creative Software synthesizer - multi timbral wave-table (16 channels)
- 2 MIDI I/O ports (2x16 channels) (gameport adapter required for MIDI I/O 2)
- FireWire® (IEEE® 1394) Connectivity
- FireWire® (IEEE® 1394) / i-Link® compatible interface with up to 400Mbps transfer rate
- Sound Blaster Audigy 2 ZS On-Board Connectors
- Line level out (Front / Side / Rear / Center / Subwoofer)
- Digital Out for 5.1 support (6-channel SPDIF output to Creative digital speakers
- Line in
- Microphone in
- FireWire® (IEEE® 1394)
- Telephone Answering Device in
- Analog / Digital CD Audio in
- 15-pin MIDI / Joystick port extension header
- Internal IEEE® 1394 header to Audigy 2 ZS Internal I/O Drive
- AD_EXT extension header to Audigy 2 ZS Internal I/O Drive
- Works with the Following Standards
- Windows® 98SE, 2000, ME ,XP and 7
- Supports Windows XP SP2
- Sound Blaster MIDI and General MIDI
- Plug and Play Sound Blaster PCI
- EAX, EAX ADVANCED HD*
- THX®
- Microsoft® DirectSound®, DirectSound 3D & derivatives
- Plug and Play Sound Blaster PCI
- OpenAL™
- PCI 2.2 compliant
- AC97 compliant
- Dolby Digital® and Dolby Digital EX
- DTS Digital Surround® and DTS-ES Extended Surround™
- Meridian Lossless Packing
- ASIO 2.0
- Dolby Digital® and Dolby Digital EX
- SoundFont 2.1
- DVD-Audio and Advanced Resolution™ DVD-Audio
- Windows Media® Audio 9
- Conditie : REFURBISHED
Garantie : 90 DAYS.
